Projects and guided setup

Bitloom works with many projects at once: every project is a profile, and switching project is switching profile (P). The Projects hub opens existing folders, creates new Yocto projects and clones projects from GitHub or any Git server. The guided setup reads how a folder builds and proposes a ready-to-use profile.

Open the hub with Configuration → w, Ctrl+P → Projects, or the Projects panel in the web dashboard's Configuration section (8).

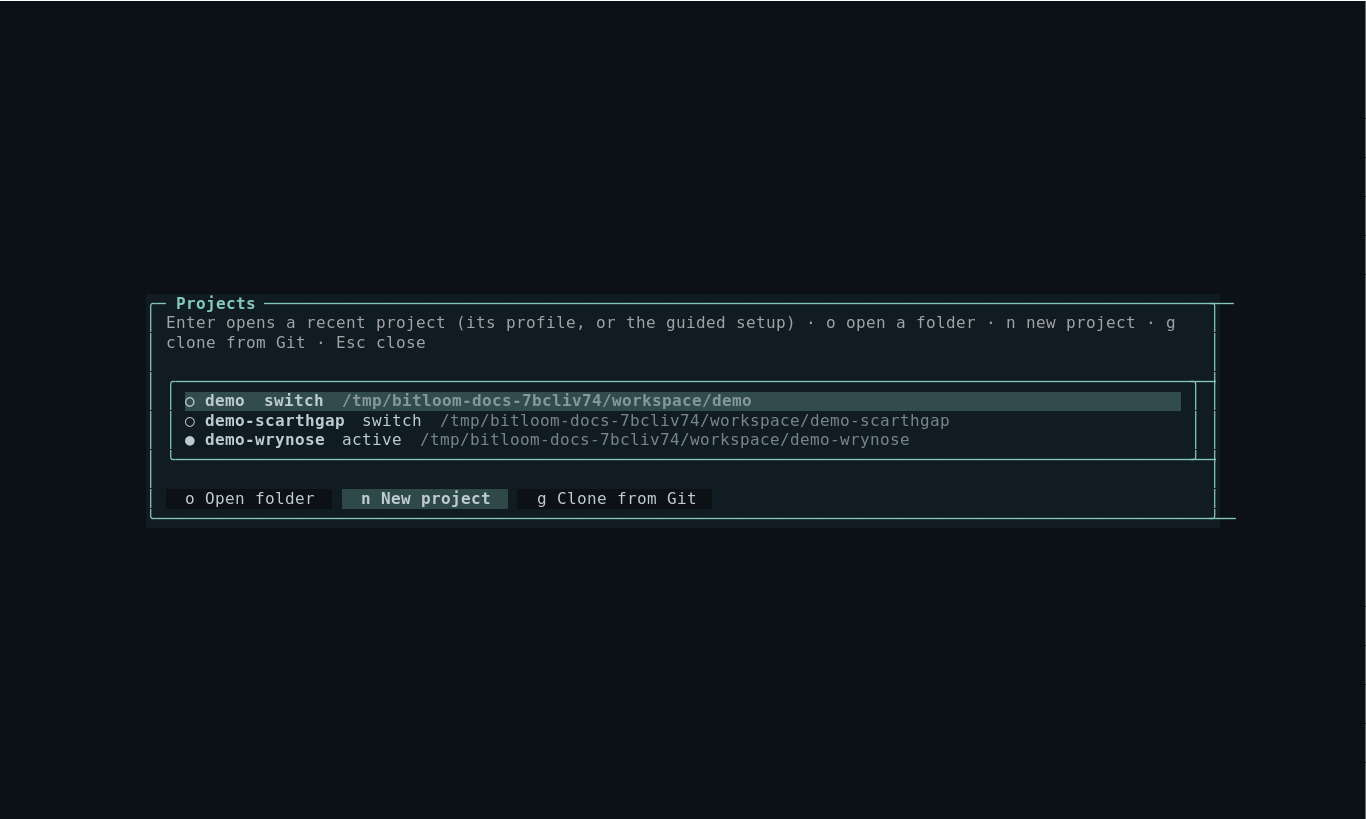

Screenshot Projects hub with recent projects

Open an existing project: guided setup#

1. In the hub press o, type the project folder and press Enter (or use Set up a project in the web Configuration section).
2. Bitloom scans the folder (two levels deep, read-only) and proposes profiles, each with the evidence it found:
   • Launcher scripts: executable scripts that call kas/kas-container, for example a project's run_build.sh. Each product configuration becomes its own wrapper proposal, titled the way you run it (YML=kas/board-a.yml ./run_build.sh build): the variable the script reads (such as YML) is set to that file, and machine and targets come from it, following includes. Files that other kas files include, or that name no machine, are fragments and are not offered as products. The build folder is read from the script's KAS_WORK_DIR (defaults such as ${KAS_WORK_DIR:-$HOME/build}, $PWD, the script's own folder, helper variables like TOP=$(cd $(dirname $0) && pwd) and per-product forms like build-${YML%.yml} or $(basename $YML .yml) are expanded); when the script computes it at run time, set KAS_WORK_DIR in the profile.
   • kas configurations: YAML files with a kas header; MACHINE and target are read from the file. kas-container is proposed when available (or when kas is missing), with a separate work directory under ~/bitloom-work.
   • bitbake-setup workspaces (the official setup tool of recent BitBake): a setup folder (build/init-build-env, config/, layers/) or the top folder holding several (bitbake-builds/ with site.conf). Each becomes a host profile that sources build/init-build-env, with MACHINE and DISTRO read from the fragments in build/conf/toolcfg.conf. bitbake-setup status and update, and listing, enabling or disabling fragments, are in Operations, offered only when the project's BitBake ships bitbake-setup and bitbake-config-build.
   • Poky / OE-Core checkouts: oe-init-build-env (also under poky/, sources/, layers/) with existing build directories and their MACHINE/DISTRO.
3. Choose a proposal with ↑/↓; the form on the right fills in. Every field is explained and checked as you type: project root, kas files, launcher executable, KAS_WORK_DIR (refused when missing, warned when on /mnt/<drive> under WSL), init script, profile validity. For launcher scripts it also warns when the script does not pass its arguments on (BitBake commands need shell -c) and when no build exists yet in the folder Bitloom will read.
4. ^O saves. The profile becomes active, and the selectors, metadata, task logs and health checks reload immediately: press b to build.
5. When one launcher builds several products, ^A (web: Save all N products) saves one profile per product in one go; the first becomes active and P (web: the profile menu) switches between them. Projects lists the folder once, naming all its profiles.

If a folder already has a profile, opening it switches to that profile instead of asking again.

On the very first start, when no profiles file exists, the guided setup opens automatically in the current directory: in the TUI (bitloom) and in the web dashboard (bitloom --web opens Configuration with the proposals for the folder it was started in).

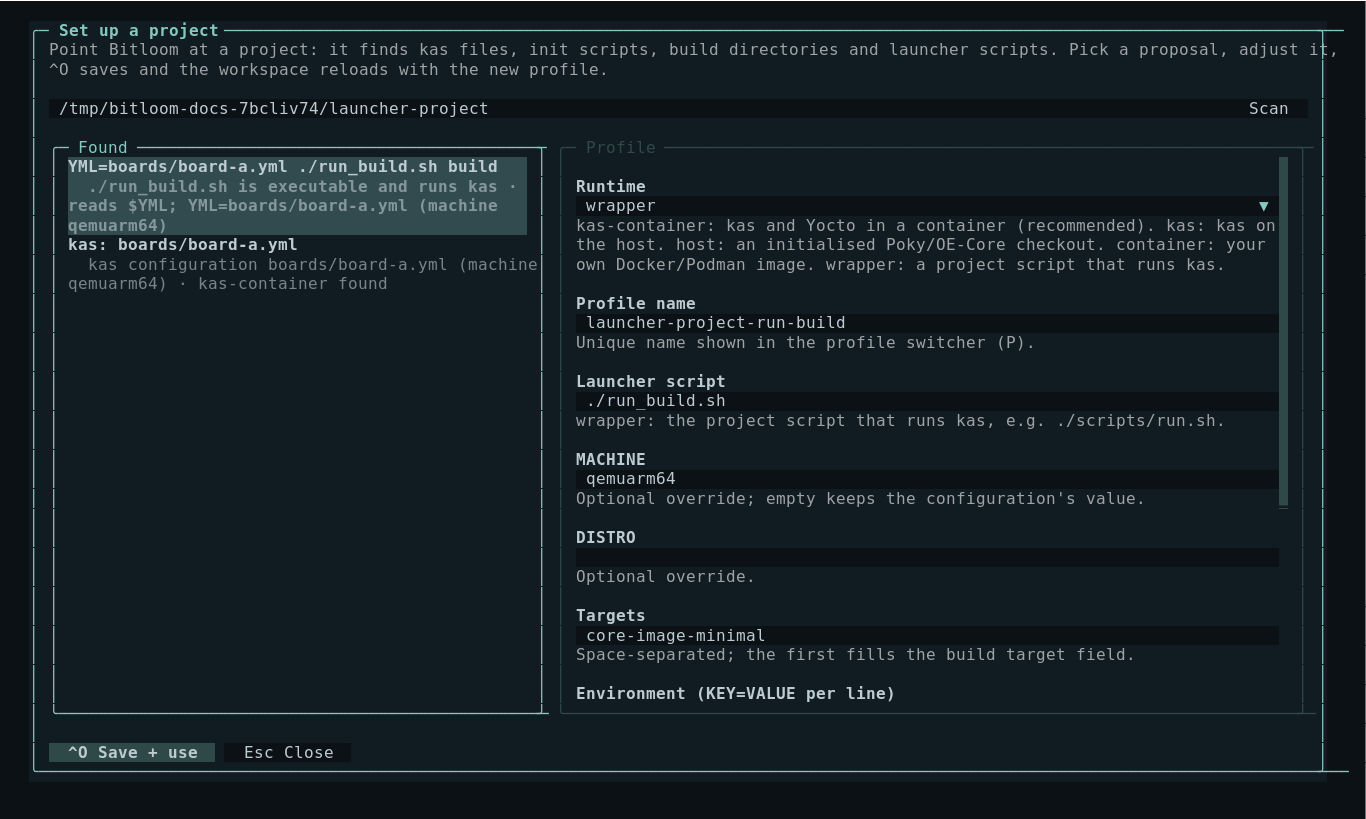

Screenshot Guided setup proposing a launcher script and a kas configuration

Animation The web dashboard's guided setup on a launcher project with two products

Project launcher scripts#

When the folder has a script that runs kas, the proposal uses the wrapper runtime: kas operations call ./script <subcommand> and BitBake commands call ./script shell -c '<command>', with the environment variables from the profile (for example YML=boards/board.yml). For BitBake commands and runtime probes the script must forward shell -c and keep standard input open. See CI and build servers for the details and a minimal example script.

Create a new project#

Press n in the hub (web: New project). A few choices give a buildable project:

Bitloom writes kas.yml pinned to the release tags verified by its own real builds (yocto-5.0.8 and yocto-6.0.2, with the commits the tags point to), a README, a .gitignore, the optional layer, and runs git init. The profile becomes active; the first build downloads layers and sources. Update the pinned tags deliberately, and use Generate kas lock file to record exact revisions.

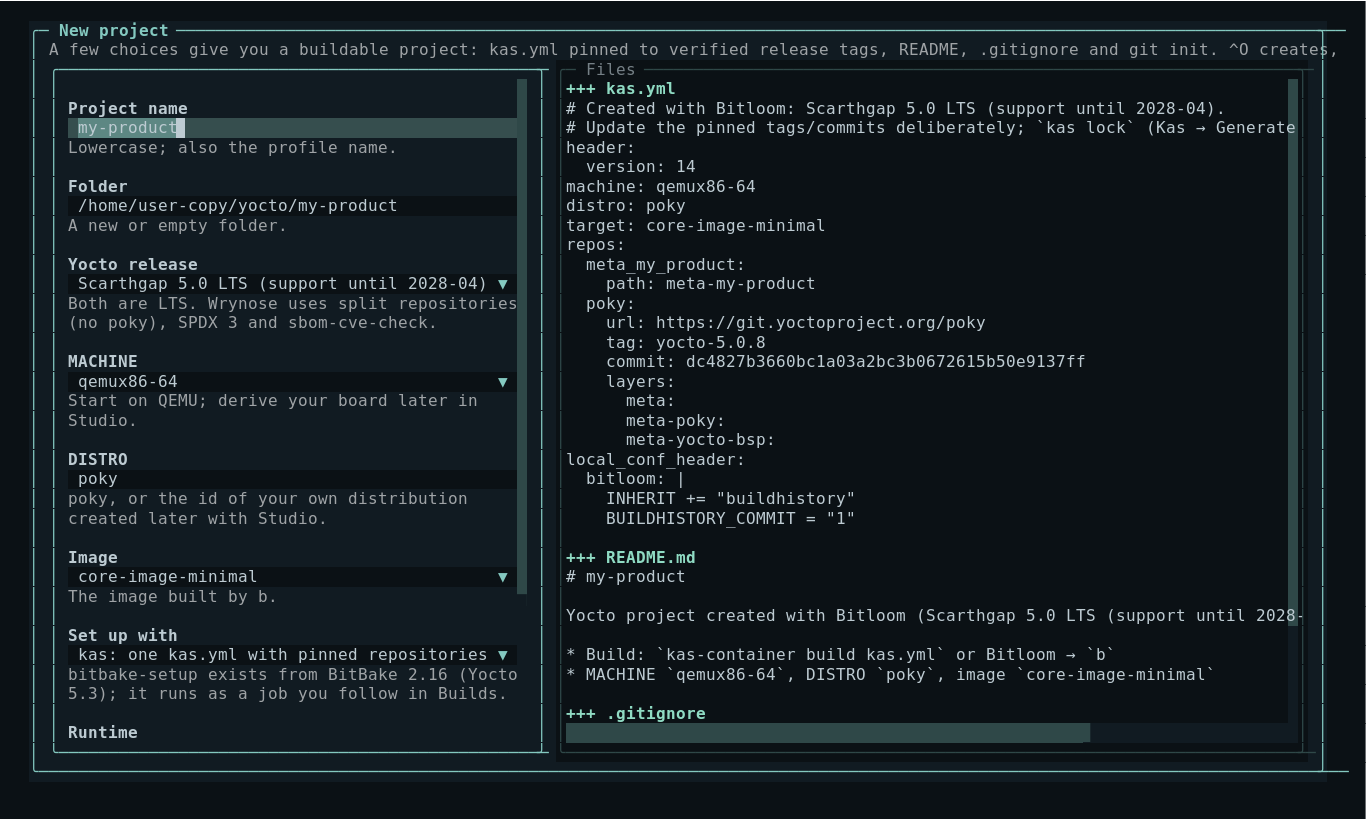

Screenshot New project form with the generated kas.yml

With bitbake-setup#

From Yocto 5.3 (BitBake 2.16) the Yocto Project ships its own setup tool, bitbake-setup, with official configuration templates. For a Wrynose project choose Set up with → bitbake-setup; for Scarthgap the option is shown as not available (its BitBake has no bitbake-setup), and kas is used.

• MACHINE and DISTRO are the ones the official poky-wrynose template offers: qemux86-64, qemuarm64, qemuriscv64, genericarm64, genericx86-64; poky, poky-altcfg (systemd), poky-tiny. They become configuration fragments (machine/…, distro/… in build/conf/toolcfg.conf).
• Runtime: container runs bitbake-setup, and later every build, in the kas build image (ghcr.io/siemens/kas/kas), with the project mounted at its own path because bitbake-setup writes absolute paths; nothing to install but Docker or Podman. host needs the Yocto host packages, and Bitloom checks the usual blockers first (the en_US.UTF-8 locale, compilers, chrpath, diffstat, lz4c, zstd) and says what to install.
• The preview shows the exact command. Create runs it as a job you follow in Builds: bitbake-setup --setting default top-dir-prefix … init --non-interactive --setup-dir-name <name> poky-wrynose poky machine/<machine> distro/<distro>. When bitbake-setup is not on your PATH, BitBake is fetched once at the release tag (yocto-6.0.2) into ~/.cache/bitloom.
• When the job succeeds the profile is saved and becomes active: b builds. Add your own layer with Studio → Layer, and enable more fragments with Operations → Enable a configuration fragment; bitbake-setup: compare with upstream and update keep the layers current.

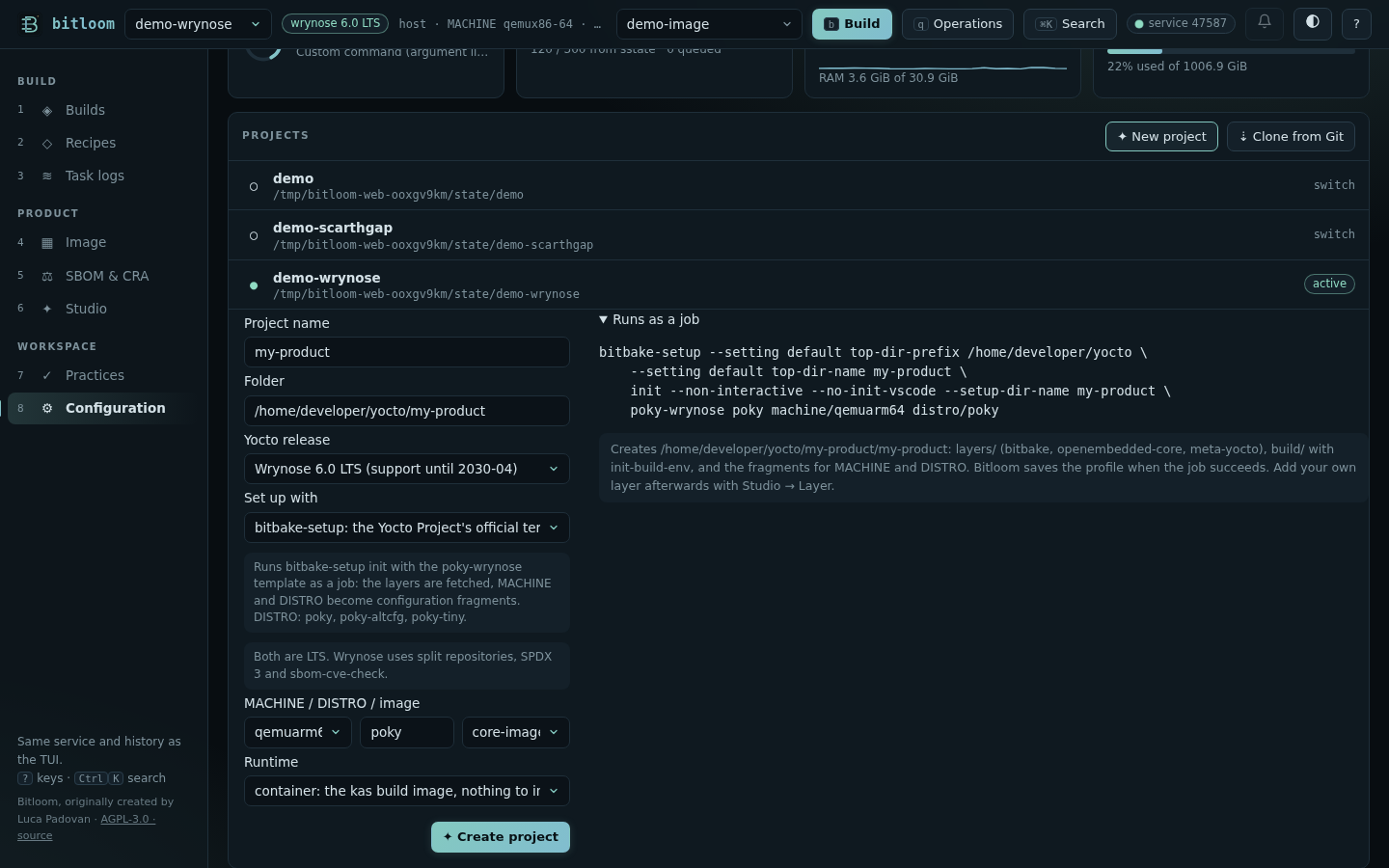

Screenshot New project with bitbake-setup: the official template's choices and the command it runs

Add a layer#

Recipes → + Add (or Ctrl+K → Add a layer) brings a layer into the project, with what it needs:

• From the Layer Index: type part of a name (virtualization, qt5, rust) and choose. Bitloom asks the OpenEmbedded Layer Index for the layer on the project's release and every required dependency, recursively: meta-virtualization brings meta-oe, meta-python, meta-networking and meta-filesystems. Layers the project already has (by BBFILE_COLLECTIONS) are marked and left alone; layers of one repository (meta-openembedded) go into one entry.
• From a Git URL: any repository, yours included; the layer's folder inside it, and the branch (the project's release by default).
• Your mirror: a base URL that replaces the original servers (https://git.mycompany.com/mirrors → …/mirrors/meta-virtualization), for networks that reach only an internal Git server.

Before anything is written, Bitloom asks each remote whether the branch exists (git ls-remote) and refuses with the reason when it does not; a remote it cannot reach (network, credentials) is shown as not checked, and adding stays possible. Then, the way the project builds:

• kas and launcher scripts: the repositories go into the kas file's repos: (a diff first, the original kept: Migrate → Undo restores it). kas fetches them on the next build.
• BitBake on the machine, in a container, bitbake-setup: the repositories are cloned next to the other layers, then bitbake-layers add-layer runs through the profile, as jobs you follow in Builds.

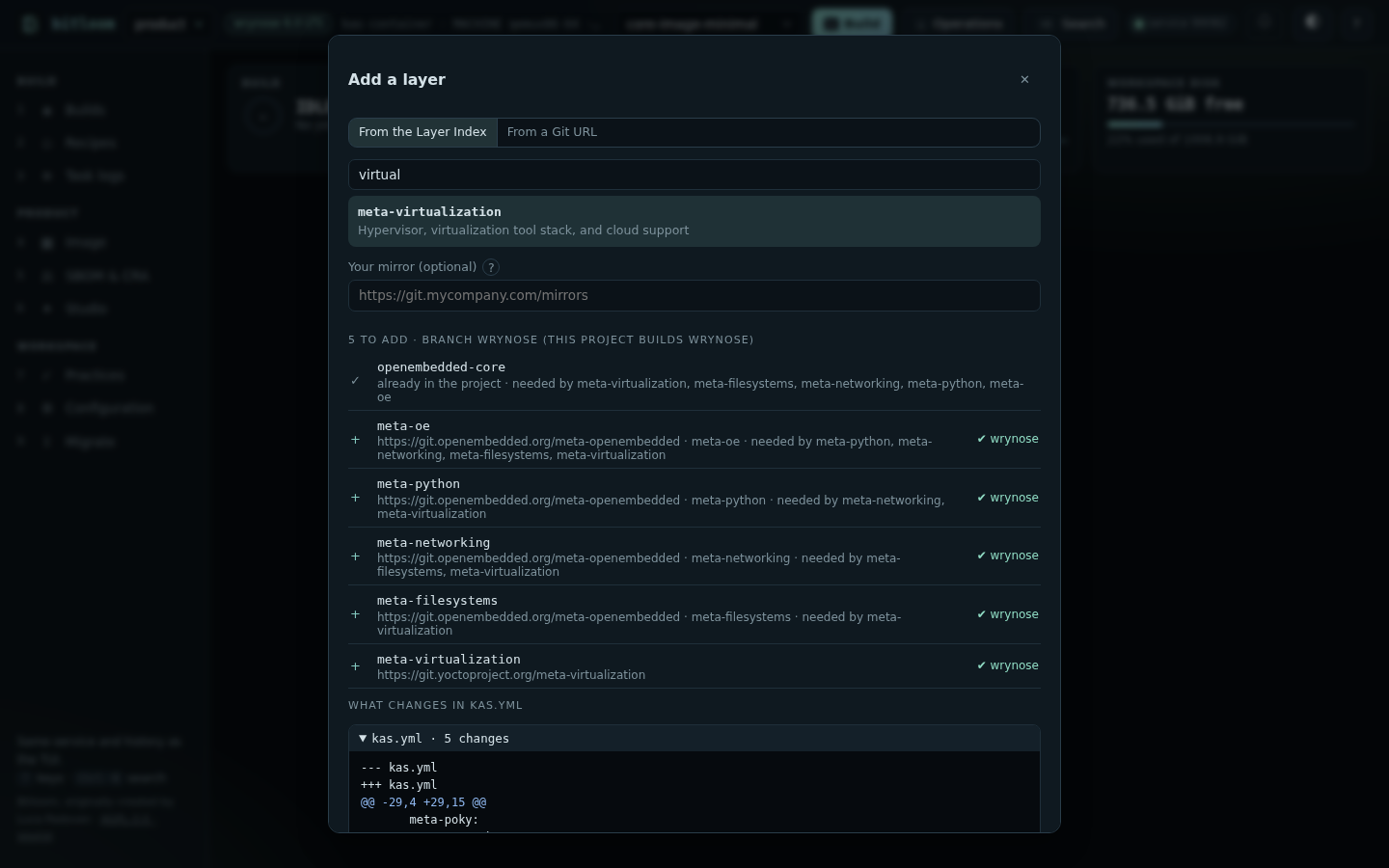

Screenshot Add a layer: meta-virtualization and its dependencies on Wrynose, and the change to the kas file

The same on the command line (--apply does it; without it, the plan):

$ bitloom --add-layer meta-virtualization --mirror https://git.mycompany.com/mirrors
Add meta-virtualization to product (wrynose)
  ✓ openembedded-core        already in the project
  + meta-oe                  https://git.mycompany.com/mirrors/meta-openembedded · meta-oe · branch wrynose
…
$ bitloom --add-layer https://git.mycompany.com/meta-acme-bsp.git --apply

Clone from GitHub or Git#

Press g in the hub (web: Clone from Git), enter an https://, ssh://, git@ or file:// URL, the destination (suggested from the URL until you edit it) and an optional branch or tag. Your Git credentials and SSH agent are used as in a terminal.

The clone runs as a normal job, so you follow its progress in Builds. When it succeeds, the guided setup opens on the new folder.

Recent projects#

The hub lists recently opened, created, cloned and set-up folders (stored in <state>/projects.json) together with every profile root. Enter switches to the folder's profile, or runs the guided setup if the folder is not set up yet.

Web dashboard#

The Configuration section has the same three parts: Projects (recent list, New project with live file preview, Clone from Git), Set up a project (scan, proposals, form, live checks, Save and use), and the health checks. Saving or creating selects the new profile in the header at once; a finished clone raises a toast with Set it up.

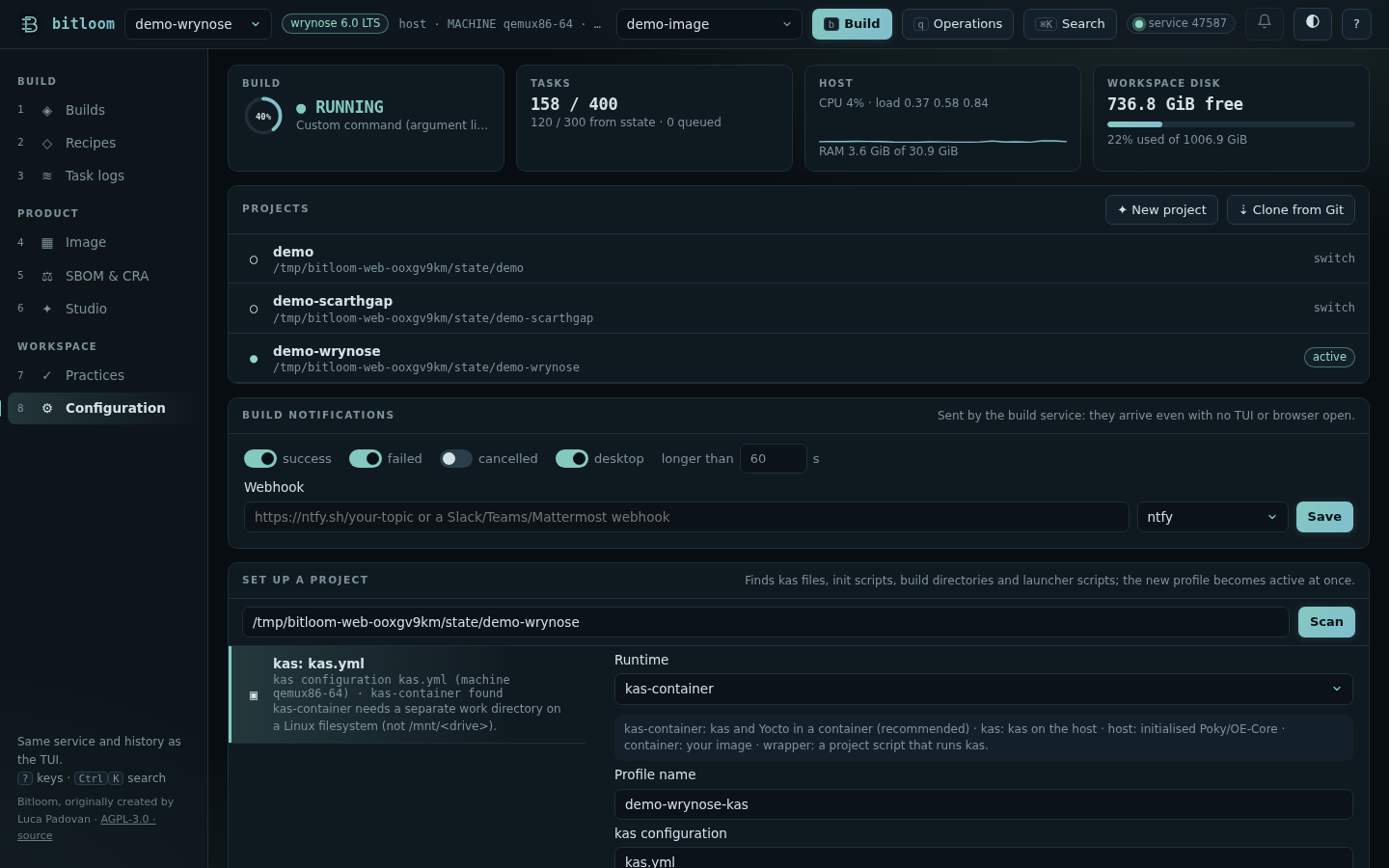

Screenshot Projects in the web dashboard
